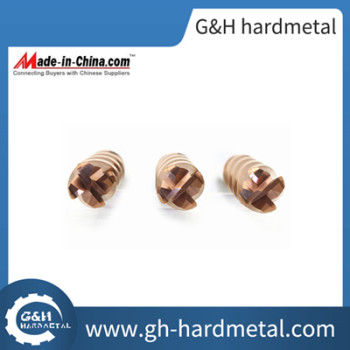

Router Bit of 4 Flutes HRC55 Carbide Corner Radius End Mill
- FOB Price
US $2.181 - 10 piece
US $2.0811 - 50 piece
US $1.9851 - 100 piece
- group name
- Carbide Endmills & Drills
- Min Order
- 1 piece
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union
- update time
- Sun, 29 Sep 2019 10:45:03 GMT
Paramtents
Suitable for Cast Iron, Carbon Steel, Mould Steel
Cutting Form Flat, Ball Nose, Corner Radius, Roughing
Work Piece HRC 45, 55, 60, 65
End Mill Flute Diameter D0.5mm-D25mm, Customized
Packging & Delivery
- 33cm x22cm x19cm
-
Min Order1 piece
Briefing
Double-tooth end mill with understated neck diameter, angular radius, Central cutting edge.
Detailed
Standard Sizes:
The following Specification for your refer, We also provide the OEM or ODM service.
End mill working parameters
Coating
The following Specification for your refer, We also provide the OEM or ODM service.
| Cutter Diameter | Flute Length | Over length | Corner radius | Shank Diameter | Flutes |
| Φ1 | 4 | 50 | 0.1 | Φ4 | 2 |
| Φ1.5 | 4 | 50 | 0.1 | Φ4 | 2 |
| Φ2 | 4 | 50 | 0.1 | Φ4 | 2 |
| Φ2.5 | 5 | 50 | 0.1 | Φ4 | 2 |
| Φ3 | 6 | 50 | 0.1 | Φ4 | 2 |
| Φ3.5 | 6 | 50 | 0.1 | Φ4 | 2 |
| Φ4 | 8 | 50/75/100 | 0.2 | Φ4 | 2/4 |
| Φ5 | 10 | 50/75/100 | 0.2 | Φ5 | 2/4 |
| Φ6 | 12 | 50/75/100/150 | 0.3 | Φ6 | 2/4 |
| Φ8 | 16 | 60/75/100/150 | 0.4 | Φ8 | 2/4 |
| Φ10 | 20 | 75/100/150 | 0.5 | Φ10 | 2/4/6 |
| Φ12 | 24 | 75/100/150 | 0.6 | Φ12 | 2/4/6 |
| Φ14 | 28 | 80/100/150 | 0.7 | Φ14 | 2/4/6 |
| Φ16 | 32 | 100/150 | 0.8 | Φ16 | 2/4/6/8 |
| Φ18 | 36 | 100/150 | 0.9 | Φ18 | 2/4/6/8 |
| Φ20 | 40 | 100/150 | 1.0 | Φ20 | 2/4/6/8 |
End mill working parameters
| Grade | HRC of end mill | Corresponding Coating | Materials to be cut |
| GH10 | HRC45 | AITiN | For Cutting the materials under HRC38 |
| GH12 | HRC55 | TiXCO | For Cutting the materials under HRC50 |
| GH40 | HRC60 | TiSIN | For Cutting the materials under HRC55 |
| GH41 | HRC65 | nACo | For Cutting the materials under HRC63 |
Coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 4000 |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 900 | 1000 | 1200 |
| Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Delivery time
For samples: 3 - 5 days
For formal orders:7 - 10 days
Payment
T/T, Western Union, PayPal, Money Gram, etc.
Payment≤1000 dollars, 100% in advance. Payment≥10000 dollars, 30% T/T in advance ,balance before shipment.
Packing
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
Shipment
DHL, FedEx, TNT, UPS, EMS, etc.
Any port in China.
For samples: 3 - 5 days
For formal orders:7 - 10 days
Payment
T/T, Western Union, PayPal, Money Gram, etc.
Payment≤1000 dollars, 100% in advance. Payment≥10000 dollars, 30% T/T in advance ,balance before shipment.
Packing
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
Shipment
DHL, FedEx, TNT, UPS, EMS, etc.
Any port in China.
