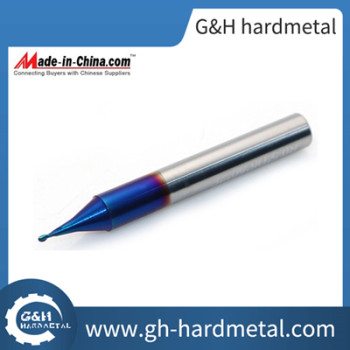

Solid Carbide Ball Nose Micro Grains HRC60 End Mill
- FOB Price
US $4.421 - 10 piece
US $4.3211 - 50 piece
US $4.2051 - 100 piece
- group name
- Carbide Endmills & Drills
- Min Order
- 1 piece
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union
- update time
- Sun, 29 Sep 2019 11:02:31 GMT
Paramtents
Suitable for Cast Iron, Carbon Steel, Mould Steel
Cutting Form Flat, Ball Nose, Corner Radius, Roughing
Work Piece HRC 45, 55, 60, 65
End Mill Flute Diameter D0.5mm-D25mm, Customized
Packging & Delivery
- 33cm x22cm x19cm
-
Min Order1 piece
Briefing
Carbide end mill for cutting metal or stainless steel
Detailed
Standard Sizes:
The following Specification for your refer, We also provide the OEM or ODM service.
| Cutter Diameter | Flute Length | Over length | Shank Diameter | Flutes |
| Φ1 | 2.5 | 50 | Φ4 | 2 |
| Φ1.5 | 4 | 50 | Φ4 | 2 |
| Φ2 | 5 | 50 | Φ4 | 2 |
| Φ2.5 | 7 | 50 | Φ4 | 2 |
| Φ3 | 8 | 50 | Φ4 | 2 |
| Φ3.5 | 8 | 50 | Φ4 | 2 |
| Φ4 | 10/15/20 | 50/75/100 | Φ4 | 2/4 |
| Φ5 | 13/18/28 | 50/75/100 | Φ5 | 2/4 |
| Φ6 | 15/20/30 | 50/75/100/150 | Φ6 | 2/4 |
| Φ8 | 20/25/35/40 | 60/75/100/150 | Φ8 | 2/4 |
| Φ10 | 25/40/50 | 75/100/150 | Φ10 | 2/4/6 |
| Φ12 | 30/40/50 | 75/100/150 | Φ12 | 2/4/6 |
| Φ14 | 30/40/60 | 80/100/150 | Φ14 | 2/4/6 |
| Φ16 | 40/60 | 100/150 | Φ16 | 2/4/6/8 |
| Φ18 | 40/60 | 100/150 | Φ18 | 2/4/6/8 |
| Φ20 | 40/60 | 100/150 | Φ20 | 2/4/6/8 |
End mill working parameters
| Grade | HRC of end mill | Corresponding Coating | Materials to be cut |
| GH10 | HRC45 | AITiN | For Cutting the materials under HRC38 |
| GH12 | HRC55 | TiXCO | For Cutting the materials under HRC50 |
| GH40 | HRC60 | TiSIN | For Cutting the materials under HRC55 |
| GH41 | HRC65 | NaCo | For Cutting the materials under HRC63 |
Coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 4000 |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 900 | 1000 | 1200 |
| Friction Coefficient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Delivery time
For samples: 3 - 5 daysFor formal orders:7 - 10 days
Payment
T/T, Western Union, PayPal, Money Gram, etc.
Payment≤1000 dollars, 100% in advance. Payment≥10000 dollars, 30% T/T in advance ,balance before shipment.
Packing
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
Shipment
DHL, FedEx, TNT, UPS, EMS, etc.
Any port in China.
